• Dual projectors/screens

• Installed PC
• Laptop/Mobile
  • HDMI
• Document Camera
• Aux Audio/Video inputs
  • 3.5mm audio

• Dual PTZ cameras
  • 1 facing presenter
  • 1 facing audience
  • Both are controllable from the touch panel

Learn more about the different types of cameras

•
• Audio playback from selected AV source through room's installed speakers

Get started by selecting a source

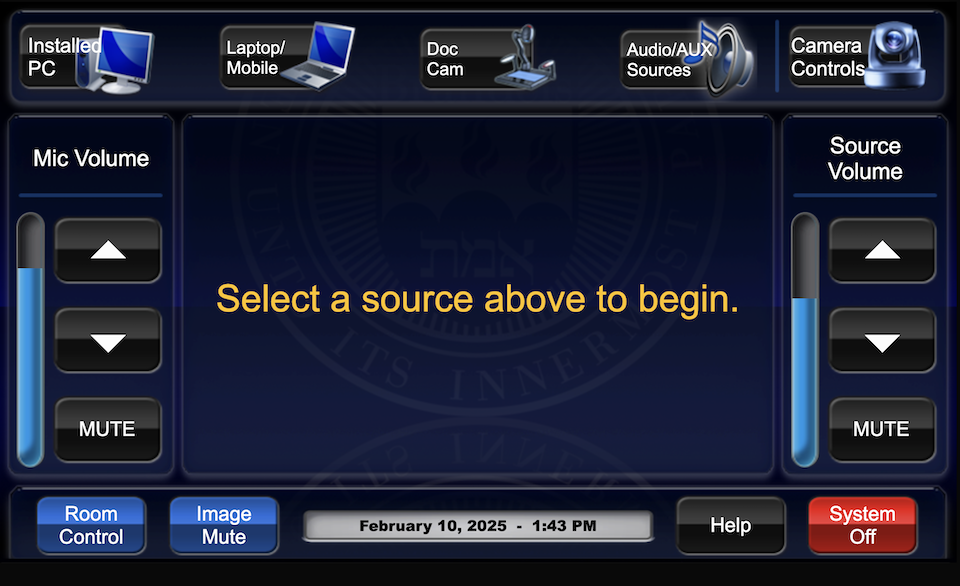

• At the Instructor Desk, tap the touch panel to wake it up and view the home page.
• Select the desired source on the top row of the touch panel.
• Both projectors will turn on and display the selected source. The selected source can only route to both projectors. It is not possible to route different sources to each projector.

Installed PC

• Select "Installed PC" to route the PC to the projector and rear monitors.
• Audio will automatically route to installed speakers.
• Login to the installed PC with Brandeis UNET credentials
• When finished, log out of computer. Please DO NOT shut down the computer.

Laptop/Mobile

• Select “Laptop/Mobile” and then select "HDMI" to connect a laptop via the HDMI cable located at the lectern.

Document Camera

• Select "Doc Cam" from the main page.
• Display physical docs and devices, or tablets as desired.
• All control buttons for zoom, focus and lighting are on the Doc Cam device.

Aux Audio/Video

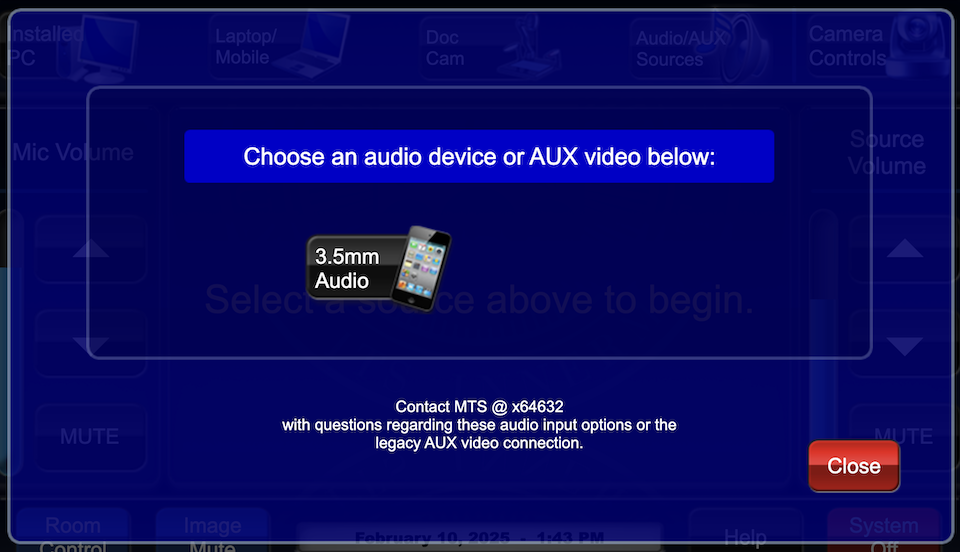

• Select "Audio/AUX Sources" button from main page.

• Allows users to connect an external analog audio device to the AV system via a 3.5mm audio plug.

• The volume controls are located on the left and right side of the touch panel the volume of installed speakers in the room.
  • Source volume affects the volume of the selected source that is being displayed by the projection system.
  • Mic volume is only applicable if an external microphone is connected to the system via the XLR jack on the AV rack.
• Raise or lower volume with the up/down arrow buttons.
• Ensure that audio levels are set properly on the source device (i.e. installed PC or laptop). If volume is up on the touch panel but audio level is not present or low, the volume may need to be adjusted on the source device (such as the installed PC or laptop/mobile device).

• To shut down the system, press the red System Off button from the main page.
• Then press the green Power Down button to confirm.

• If using the installed PC, log out of the computer, but do not shut it down. It will go to sleep in low-power mode after the user has logged out.
